Keston system 30

Keston system 30

Keston system 30-1

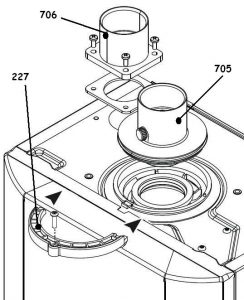

Keston system 30-2

Keston system 30-3

Keston system 30-4

IDPart NumberPart DescriptionNotesPurchase
1000NOTE
101174827HYDROBLOCK CLIP KIT
102175549HYDROBLOCK GASKET KIT
102177535HYDROBLOCK GASKET KIT
103175558HYDROBLOCK FIXINGS KIT
103176454HYDROBLOCK FIXINGS KIT
104175923CH RETURN VALVE PACK
105175528CH FLOW PACK
108175670PUMP HEAD KIT
108176455PUMP HEAD KIT - GRUNDFOS
108177925PUMP HEAD KIT ERP
109175555PUMP COMPLETE KIT
113175413PRESSURE RELIEF VALVE KIT
113176610PRV KIT
114175545PIPE - PRV OUTLET
114177536PIPE PRV OUTLET
115175546PIPE - FLOW
115177537PIPE FLOW
116175547PIPE - RETURN
116177538PIPE RETURN
117176000PIPE - EXPANSION VESSEL KIT
117177539HOSE EXPANSION VESSEL KIT
117.1177707CLIP EXPANSION VESSEL
118176001EXPANSION VESSEL KIT
118177540EXPANSION VESSEL KIT
120175992FLOW GROUP KIT
120177716FLOW GROUP KIT
121176077BY-PASS PIPE KIT NICKEL PLATED
121177715BY PASS KIT
132176004HYDROBLOCK COMPLETE KIT
132177666HYDROBLOCK SYSTEM ASSEMBLY
132177937HYDROBLOCK ERP COMPLETE KIT SYSTEM
135175679PRESSURE GAUGE KIT
136175703PIPE - PRV ASSEMBLY
137175745KIT - PUMP CONNECTOR (ELECTRICAL)
138175929WASHERS KIT-PIPE-HYDROBLOCK EPDM QTY 10
141176553PUMP DRAIN KIT - GRUNDFOS 59200316
2000NOTE
201175645GAS LINE GASKETS KIT
201177541GAS LINE GASKETS KIT
202175646GAS LINE FIXINGS KIT
202177542GAS LINE FIXINGS KIT
203175526GAS PACK
203.1176562GAS COCK TEST NIPPLE SCREW
204175561PIPE - GAS INLET
204177543PIPE GAS INLET
205175562GAS VALVE KIT
205177544GAS VALVE KIT
205.1177706CLIP GAS VALVE
206175563PIPE - GAS INJECTOR
206177545PIPE GAS INJECTOR
208175611INJECTOR
211175613INJECTOR ASSEMBLY KIT
214175567VENTURI
215175569FAN KIT
216175570GASKET - FAN
217175571BURNER KIT
218175572GASKET - BURNER
221175896SUMP KIT
221.1175954CLEAN OUT COVER & GASKET - SUMP (FROM XT)
223176994FLUE MANIFOLD TOP ASSEMBLY KIT
224175578FLUE MANIFOLD TOP
227175983CLAMP RETAINING FLUE TURRET
228175582HOSE - CONDENSATE INTERNAL
229175583SIPHON TRAP KIT
231175586CONDENSATE OUTLET CONNECTION
232175620TURRET/MANIFOLD GASKET
3000NOTE
301175626BOX FIXINGS HINGE & SPRING KIT
3020NOTE
302175935KIT - PRIMARY PCB
302177708PRIMARY PCB I12
302.1175962KIT BCC CARD
303175978CUI BOARD KIT 2 POTENTIOMETER
303.1177387KNOB POTENTIOMETER WHITE
304176432CONTROL THERMISTOR - RETURN (ZH ONWARDS)
305175590FLOW SENSOR HALL EFFECT
306175591ELECTRODE - IGNITION
307175592ELECTRODE - DETECTION
308175593IGNITOR UNIT
309175594THERMISTOR - NO FLOW
310175595WRIST STRAP
311177387KNOB POTENTIOMETER WHITE
312175597HARNESS - EARTH HT
313175598IGNITION LEAD
314175714CONTROL BOX LENS
315175600HARNESS - CUI TO PRIMARY
317177065HARNESS MAINS VOLTAGE KESTON SYSTEM
317177670HARNESS MAINS SYSTEM KESTON
317177928HARNESS MAINS ERP SYSTEM KESTON
318176011HARNESS LOW VOLTAGE
318177669HARNESS SELV SYSTEM
318177927HARNESS SELV ERP SYSTEM
320175604HARNESS - DETECTION LEAD
321176930KIT - HARNESS THERMOSTAT
321.1177051HARNESS COMPLETE WEATHER COMPENSATION
322177055CONTROL BOX KESTON SYSTEM 30
322177683CONTROL BOX ASSEMBLY KESTON SYSTEM 30
324175623CONTROL BOX LID KIT
325176075CONTROL BOX FRONT 2 POT SUB ASSEMBLY
326175624PROGRAMMER BLANK INSERT
327175625PLUG - TIMER LINK
328175627PCB FUSE
329175554HARNESS TRUNKING
329177565HARNESS TRUNKING
330175728COVER - TERMINAL BLOCK
332175949THERMOSTAT KIT
4000NOTE
401175615HEAT ENGINE KIT
401177566HEAT ENGINE KIT
401.1173870PIPE CLIP
402175617HEAT ENGINE FIXINGS KIT
402177567HEAT ENGINE FIXINGS KIT
403175618HEAT ENGINE GASKET KIT
403177568HEAT ENGINE GASKET KIT
404175565HEAT EXCHANGER PLUG KIT
5000NOTE
502175656FRONT PANEL SCREWS
503175619WALL MOUNTING BRACKET KIT
504177054FRONT PANEL ASSEMBLY KESTON SYSTEM
504177054FRONT PANEL ASSEMBLY KESTON SYSTEM
504177726FRONT PANEL ASSEMBLY KESTON SYSTEM 30
505177053FASCIA - KESTON SYSTEM
505177759FASCIA KIT KESTON SYSTEM 30
506175630BRACKET - GAS VALVE KIT
506177569BRACKET GAS VALVE KIT
507175631BRACKET - EXPANSION VESSEL
508175639GROMMET - CHASSIS DRAIN
509175665SEAL - SEALING PANEL
510177084BADGE KIT - KESTON SYSTEM 30
513175991MAGNETS - DOOR - SPARES KIT QTY 2
514177373FRONT PANEL ANCHOR POINT KIT
601176044COMBINED INST & SERV/USER INST PACK
7000NOTE
700177016ACCESSORY PACK - KESTON COMBI & SYSTEM
701177088FLEXIBLE FLUE RUBBER TERMINAL WALL SEAL Enquire
702177062TERMINAL 50MM FLUE
703177064TERMINAL WALL PLATE KESTON
705177071FLUE CONNECTOR WITH SAMPLE POINT
706177057FLUE SPIGOT WITH SAMPLE PLUG
707177052OTC SENSOR S010076
